Deutz TCD 16.0 V8

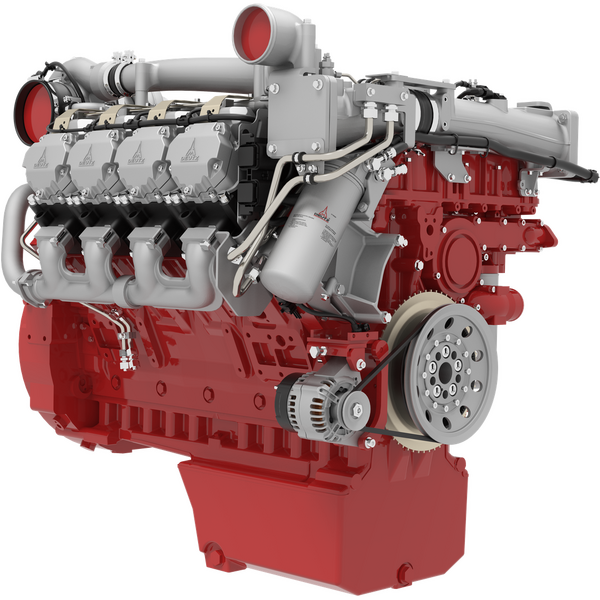

Deutz TCD 16.0 V8 Engine

Water-cooled, V version (90°) 8-cylinder engine with turbocharging and charge air cooling.

Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure lowest consumption and total operating cost.

Features

  • Thanks to SCR technology, the cooler sizes do not need to be enlarged in comparison with Tier 3 engines. Fuel consumption is reduced. (applicable for Stage IIIB and IV)
  • Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission laws.
  • The engines have a modular exhaust aftertreatment system (EAT) with components from the DVERT® kit and optional configuration variants. This means a high flexibility in machine integration for the OEM.
  • Best cold starting performance even under extreme conditions.
  • The extremely compact engine design and customer friendly accessories reduce the installation cost and increase the number of applications.
  • Both engines are also available as a flat version for extremely compact installations.
  • The powerful Common Rail injection system and the electronic engine control (EMR) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
  • 100% power take-off at flywheel and front end and additionally up to three PTO drives with a total torque of up to 520 Nm.
  • The engines meet the requirements of the EU Stage V and US EPA Tier 4 with SCR. For EU Stage V a DPF is integrated into the EAT system. A variant with-out EAT is available as an option for less regulated markets.

Deutz TCD 16.0 V8 Engine Specifications

  TCD 16.0 V8 - 520 kW
Hp 697
kW 520
RPMs 2100
Lbft 2132
Nm 2890
Liters 15.9
Cubic Inches 969
Dry Weight 2778 lbs
Cylinders 8
Cycle 4 Stroke
Emissions US EPA Tier 4F
EU Stage V
