Isuzu 4LE2X

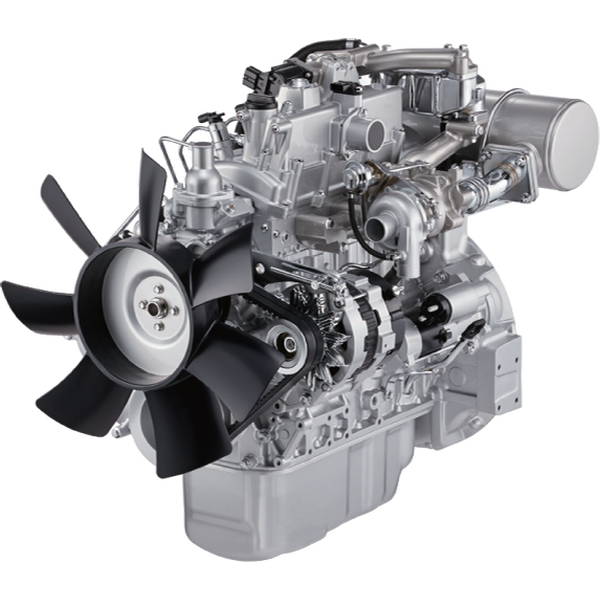

Isuzu 4LE2X Engine

The Isuzu 4LE2X diesel engine provides industry leading performance and holds up to the Isuzu mantra of "Performance that goes to work". This engine is offered in a 66 HP, constant speed rating option along with a 62 HP, variable speed rating option.

Features

  • Displacement: 2.2 L
  • Turbo or turbocharged charge air cooled (CAC)
  • Fuel consumption: .384 – .403 LB/HP-HR
  • Electric self-priming fuel lift pump
  • 12V Electronics
  • Cooled EGR
  • Deep sump oil pan
  • 250 – 500-hour service intervals
  • 5-year / 5,000-hour limited warranty*
  • SAE #4 or #5 Housing
  • Gear case PTO
  • Glow plug starting aid
  • Maintenance Free DOC

Isuzu 4LE2X Engine Models

  4LE2X (66 HP) 4LE2X (62 HP)
Hp 66 62
kW 49 46
RPMs 1800 2400
Liters 2.2 2.2
Cubic Inches 134.3 134.3
Dry Weight 474 lbs 474 lbs
Cylinders 4 4
Cycle 4 Stroke 4 Stroke
Engine Rating Constant Speed Constant Speed
Emissions US EPA Tier 4F
EU Stage V
US EPA Tier 4F
EU Stage V
