Isuzu U-Series Engine

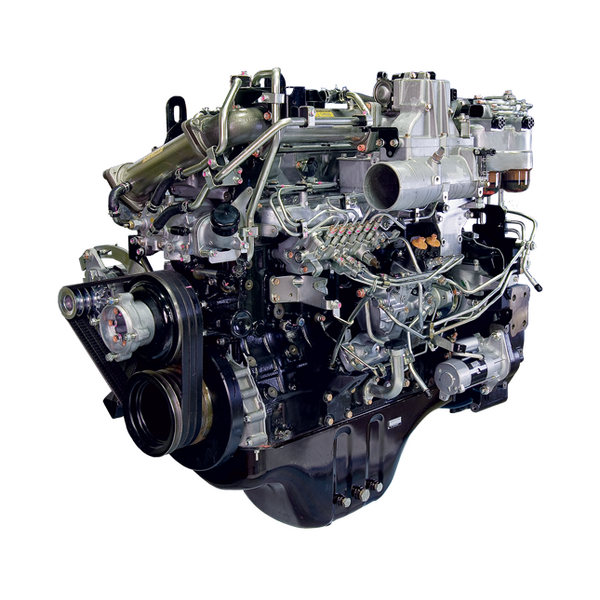

Isuzu 6UZ1 Engine

The Isuzu 6UZ1 diesel engine provides industry leading performance and holds up to the Isuzu mantra of "Performance that goes to work". This engine is offered in a 362 HP, constant speed rating.

Features

  • Displacement: 9.8 L
  • Turbo charged & charge air cooled
  • Peak torque: 1090 LB/FT @ 1500 RPM
  • Fuel consumption: .342 LB/HP-HR
  • Flywheel housing: SAE 1
  • Electric self-priming fuel lift pump
  • 24V electrics
  • Glow plug starting aid
  • High angularity oil pan
  • 500-hour service intervals
  • 5-year / 5,000-hour limited warranty*

Specifications

  6UZ1 - 269.9 kW
Hp 362
kW 269.9
RPMs 2000
Liters 9.8
Cubic Inches 604.1
Dry Weight 1851 lbs
Cylinders 6
Cycle 4 Stroke
Engine Rating Variable Speed
Emissions US EPA Tier 4F
EU Stage V
