Isuzu H-Series Engine

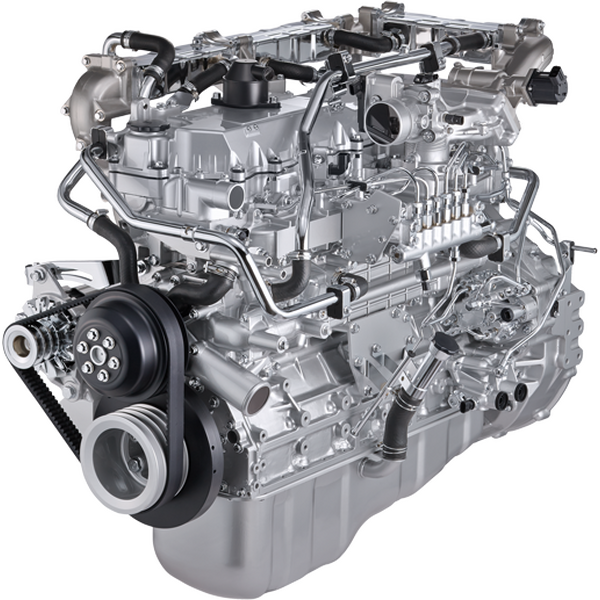

Isuzu 6HK1 Engine

The Isuzu 6HK1 diesel engine provides industry leading performance and holds up to the Isuzu mantra of "Performance that goes to work". This engine is offered in a 282 HP, constant speed rating.

Features

  • Displacement: 5.2 L or 7.8 L
  • Turbocharged charge air cooled
  • Peak torque: 496.5 LB/FT – 796.5 LB/FT
  • Fuel consumption: .342 LB/HP-HR
  • SAE #2 or SAE #3 flywheel housing
  • Electric self-priming fuel lift pump
  • 12V or 24V electronics
  • Glow plug starting aid
  • High angularity oil pan
  • 500-hour service intervals
  • 5-year / 5,000-hour limited warranty*

Specifications

  6HK1 - 210.3 kW
Hp 282
kW 210.3
RPMs 1900
Liters 7.8
Cubic Inches 476.0
Dry Weight 1373 lbs
Cylinders 6
Cycle 4 Stroke
Engine Rating Variable Speed
Emissions US EPA Tier 4F
EU Stage V
